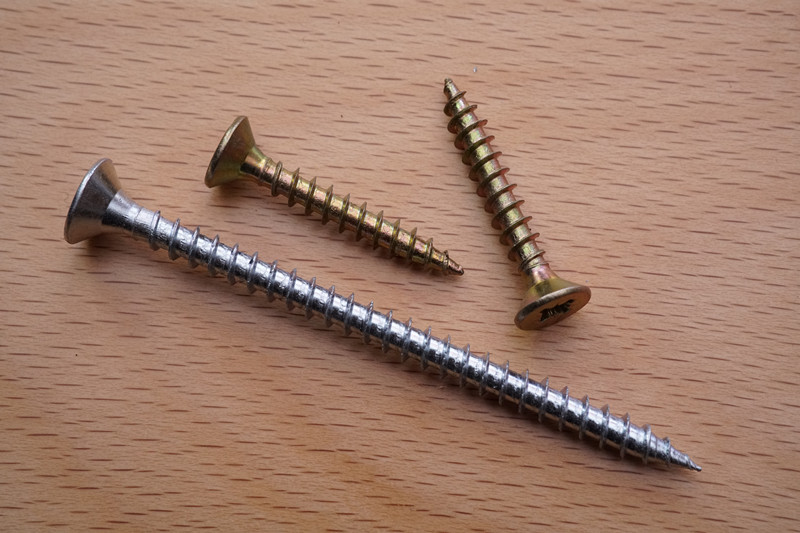

CHIPBOARD SCREWS (SINGLE THREAD WOODSCREW)
FEATURES
- A Top quality single thread, versatile wood screw.
- Popular with carpenters, Chipboard screw are precisely engineered to power drive and hold fast in hard and softwood, MDF and chipboard.
APPLICATIONS
- Excellent for softwood & Chipboard.
- Deep, Sharp , Single Thread for Cutting Cleanly through Wood.
- Superior Quality & Heat-Treated for Resistance to Snapping.
- Angled Point Usually Needs No Pilot Hole.
- Zinc & Yellow Passivated for Double Corrosion Resistance.
| HEAD TYPE | CUNTERSUNK(SINGLE HEAD AND DOUBLE HEAD) |
| DRIVE TYPE | POZI |
| THREAD TYPE | COARSE THREAD |
| PART NO. | SIZE IFI | PART NO. | SIZE IFI | PART NO. | SIZE IFI |
| MPS3012 | 3*12 | MPS4045 | 4*45 | MPS5040 | 5*40 |
| MPS3016 | 3*16 | MPS4050 | 4*50 | MPS5045 | 5*45 |
| MPS3020 | 3*20 | MPS4055 | 4*55 | MPS5050 | 5*50 |
| MPS3025 | 3*25 | MPS4060 | 4*60 | MPS5055 | 5*55 |
| MPS3030 | 3*30 | MPS4070 | 4*70 | MPS5060 | 5*60 |
| MPS3040 | 3*40 | MPS4516 | 4.5*16 | MPS5070 | 5*70 |
| MPS3512 | 3.5*12 | MPS4520 | 4.5*20 | MPS5080 | 5*80 |
| MPS3516 | 3.5*16 | MPS4525 | 4.5*25 | MPS5090 | 5*90 |
| MPS3520 | 3.5*20 | MPS4530 | 4.5*30 | MPS50100 | 5*100 |
| MPS3525 | 3.5*25 | MPS4535 | 4.5*35 | MPS6035 | 6*35 |
| MPS3530 | 3.5*30 | MPS4540 | 4.5*40 | MPS6040 | 6*40 |
| MPS3535 | 3.5*35 | MPS4545 | 4.5*45 | MPS6045 | 6*45 |
| MPS3540 | 3.5*40 | MPS4550 | 4.5*50 | MPS6050 | 6*50 |
| MPS3545 | 3.5*45 | MPS4555 | 4.5*55 | MPS6055 | 6*55 |
| MPS3550 | 3.5*50 | MPS4560 | 4.5*60 | MPS6060 | 6*60 |
| MPS4016 | 4*16 | MPS4570 | 4.5*70 | MPS6070 | 6*70 |
| MPS4020 | 4*2.0 | MPS4580 | 4.5*80 | MPS6080 | 6*80 |
| MPS4025 | 4*25 | MPS5020 | 5*20 | MPS6090 | 6*90 |
| MPS4030 | 4*30 | MPS5025 | 5*25 | MPS6100 | 6*100 |
| MPS4035 | 4*35 | MPS5030 | 5*30 | MPS6120 | 6*120 |
| MPS4040 | 4*40 | MPS5035 | 5*35 | MPS6130 | 6*130 |
