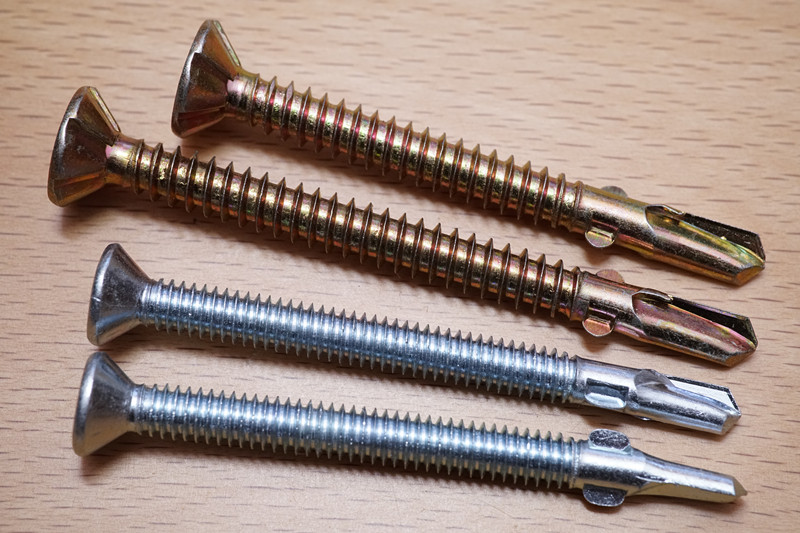

FLAT HEAD WITH WING & SHANK SLOT SELF DRILLING SCREW
FEATURES

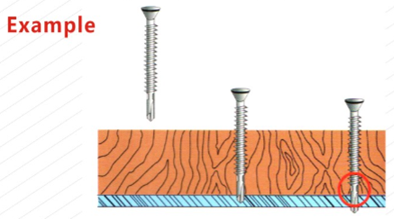

- For attaching wood to heavy gauge metal.
| HEAD TYPE | FLAT HEAD |
| DRIVE TYPE | CROSS |
| THREAD TYPE | TYPE AB |
| PART NO. | SIZE IFI | SIZE DIN | POINT NO. |
| FHWS10000 | 10#*3/4"～10#*3" | 4.8*19～4.8*75 | 3# |
| FHWS12000 | 12#*3/4"～12#*4" | 5.5*19～5.5*100 | 3#,4#,5# |
| FHWS14000 | 14#*3/4"～14#*4" | 6.3*19～6.3*100 | 3#,4#,5# |
