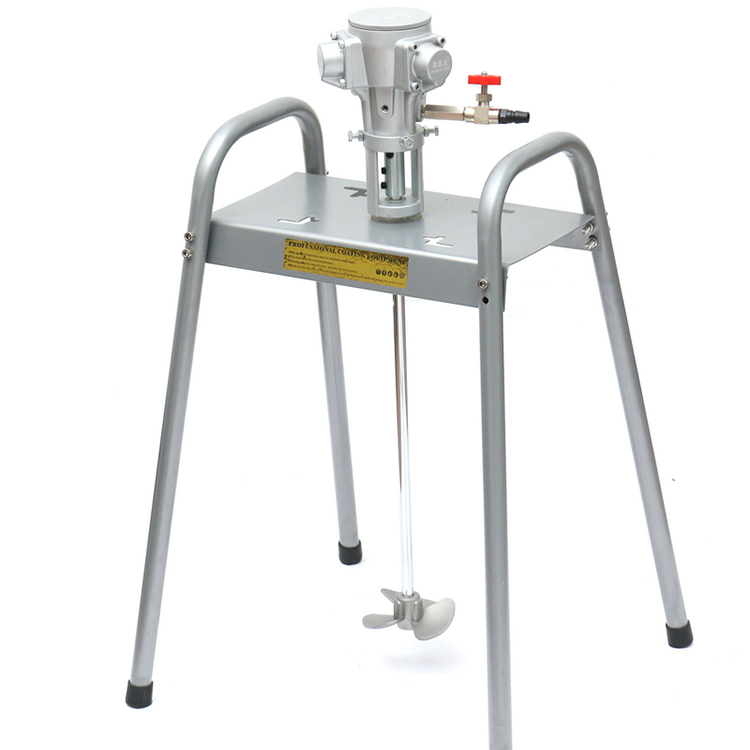

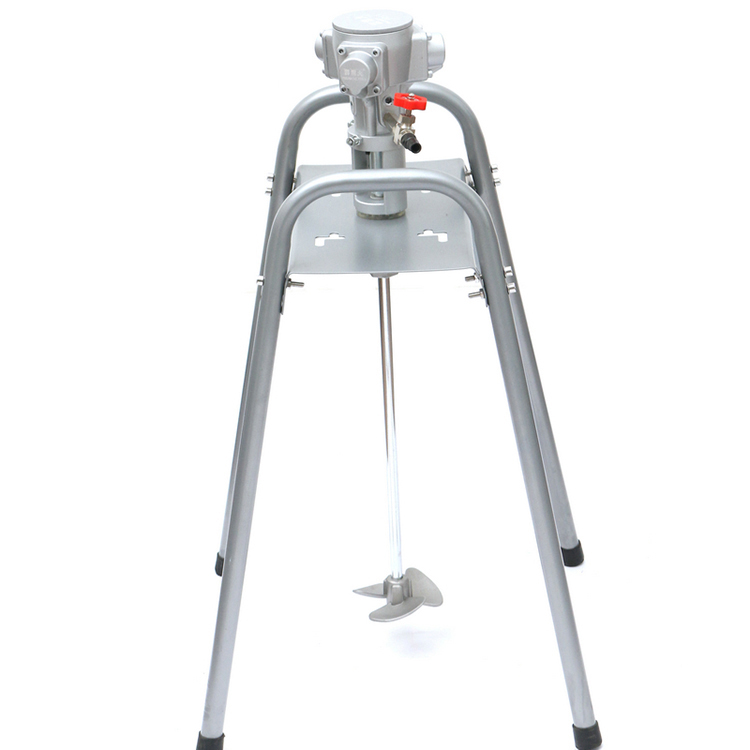

UW-A202
1/4 HP Air Agitator
FEATURES

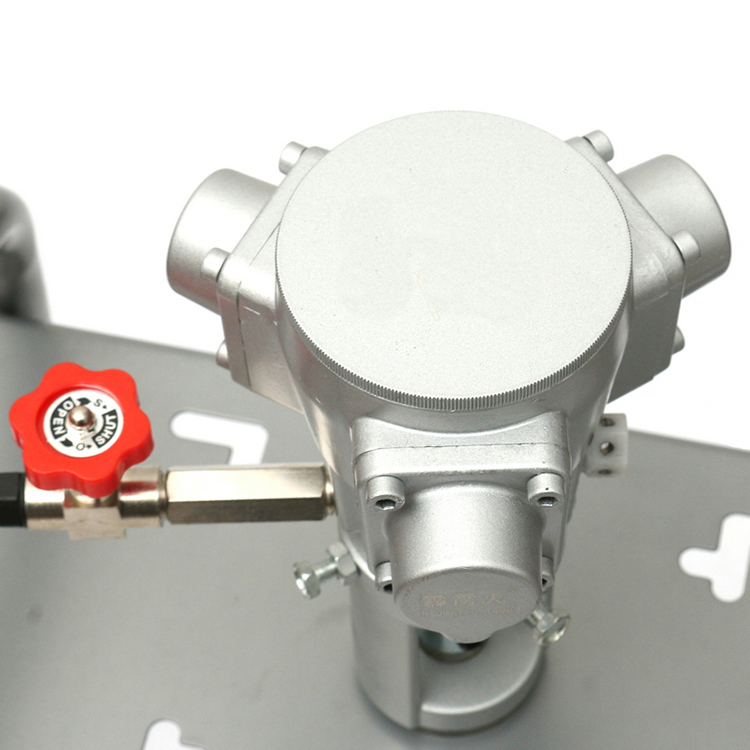

- Compressed air as power source
and pneumatic motor as medium
power;100% explosion protection - Suitable to mix the material in open
type drum or barrel - Pneumatic motor is with the
stepless speed regulating function
| Power: 1/4HP | N.W.: 6.2kg | ||
| Free Speed: 1500R.P.M | W.G.: 7.0kg | ||
| Max Torque: 1.37Nm | Box size: 64*44*13cm | ||
| Painting Barral: 60L | QTY: 3pcs/ctn | ||
| Air Cons: 280L/min | Ctn size: 66*46*46cm | ||
| Shaft: 12*500mm | Ctn weight: 22.8kg | ||

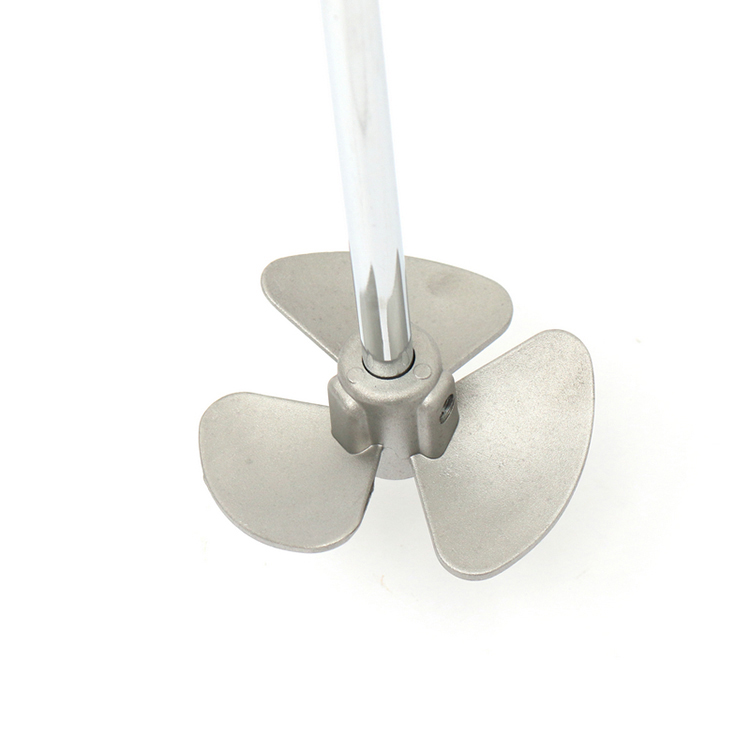

| Vane Size: 4" | Air Pressure: 0.63MPa |
