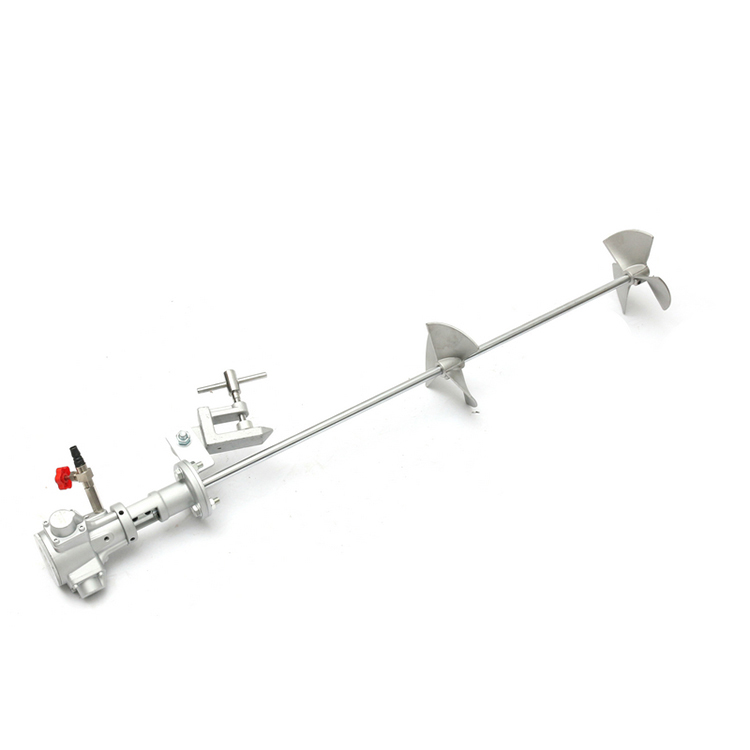

UW-A302
1/4 HP Cliping Air Agitator
FEATURES
- Compressed air as power source
and pneumatic motor as medium
power;100% explosion protection - Suitable to mix the material in open
type drum or barrel - Pneumatic motor is with the
stepless speed regulating function
| Power: 1/4HP | N.W.: 6.5kg | ||
| Free Speed: 1500R.P.M | W.G.: 7.8kg | ||
| Max Torque: 1.37Nm | Box size: 114*24*17.5cm | ||
| Painting Barral: 200L | QTY: 4pcs/ctn | ||
| Air Cons: 280L/min | Ctn size: 115*51*46cm | ||
| Shaft: 16*960mm | Ctn weight: 33.2kg | ||
| Vane Size: 6"X2 | Air Pressure: 0.63MPa |
