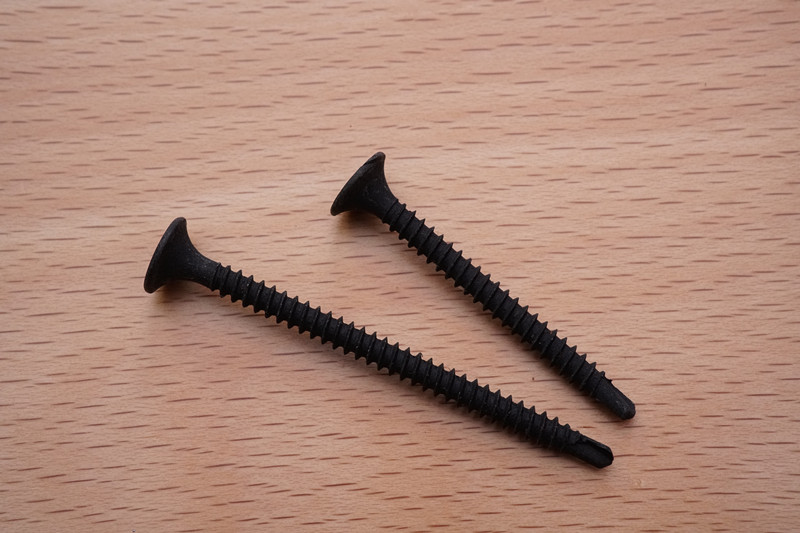

BUGLE HEAD SELF DRILLING SCREW
FEATURES
- For fixing of plasterboard to metal.
- For fixing plasterboard to steel from 0.8mm to 2.5mm thickness.
- Drill point provides easier cutting and faster penetration.
- Available in Black Phosphate or Zinc plated.
APPLICATIONS
- Brackets.
- Fixing.
- Fencing.

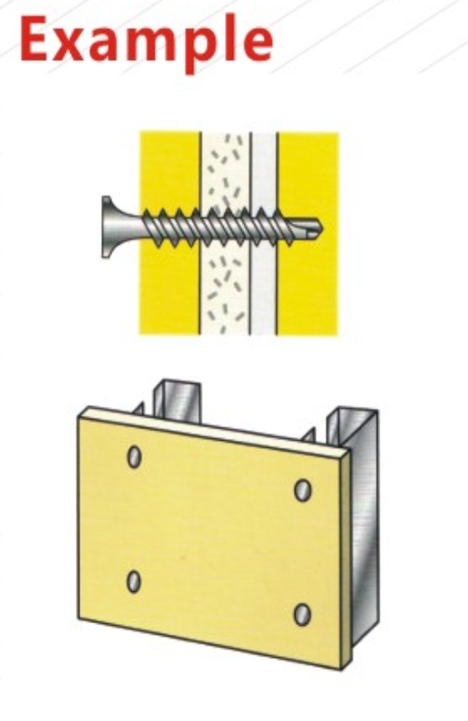

- Used for fastening drywall to 14-20 gauge metal studs.
| HEAD TYPE | BUGLE WASHER HEAD |
| DRIVE TYPE | CROSS |
| THREAD TYPE | TYPE AB |
| PART NO. | SIZE IFI | SIZE DIN | POINT NO. |
| BU06000 | 6#-20*1"～6#-20*2" | 3.5-20*25～3.5-20*50 | 2# |
| BU07000 | 7#-19*1"～7#-19*2-1/2" | 3.9-19*25～3.9-19*63 | 2# |
| BU08000 | 8#-18*2"～8#-18*3" | 4.2-18*50～4.2-18*75 | 2#,3# |
| BU10000 | 10#-16*2"～10#-16*4" | 4.8-16*50～4.8-16*100 | 3# |
